How to Choose the Right Electric Submersible Pump?

Understanding Electric Submersible Pump Types and Key Features

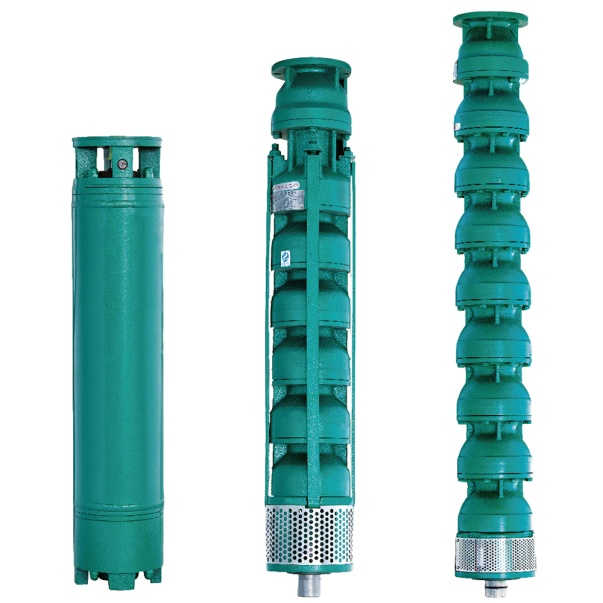

Overview of Electric Submersible Pump Types and Core Functionalities

Electric submersible pumps (ESPs) convert rotational energy into hydraulic pressure to efficiently move fluids in fully submerged environments. Three main types are used across industrial and agricultural sectors:

Pump Type	Flow Rate	Pressure Output	Ideal Use Case
Centrifugal	Moderate	High	Deep wells, oil extraction
Mixed-flow	High	Moderate	Irrigation, flood control
Axial-flow	Very High	Low	Drainage, shallow reservoirs

Centrifugal pumps are best suited for high-pressure applications such as oil well extraction, while axial-flow models prioritize high-volume output for stormwater and drainage systems. Mixed-flow designs offer a balance, making them ideal for large-scale irrigation and flood mitigation.

Material Construction and Motor Sealing Technologies for Durability

ESPs need to handle tough environments so they're built with stainless steel parts and special polymers that won't corrode when exposed to water. The sealing system is pretty advanced too it uses both mechanical face seals and those triple-lip O-rings which gives them an IP68 rating against water ingress. This matters a lot because sand gets everywhere in farm wells, and chemicals in wastewater can eat away at regular materials over time. What this means in practice is longer lasting pumps even when dealing with gritty substances or aggressive chemicals in industrial settings.

Depth, Temperature, and Environmental Limitations by Design

Standard axial flow units typically operate down to about 50 meters, whereas those deep well centrifugal pumps can reach way beyond that mark, sometimes exceeding 500 meters in depth. When dealing with really hot environments where temperatures might hit around 150 degrees Celsius or even 302 Fahrenheit, manufacturers equip these systems with special ceramic bearings and cables that resist heat damage quite well. And if we're talking about pumping water that's loaded with sand or grit, then switching to impellers coated with tungsten carbide makes all the difference. These upgraded parts last roughly twice as long as regular alloy versions when handling those harsh, abrasive conditions found in many real world applications.

Matching Pump Specifications to Application Requirements

Evaluating Flow Rate and Total Dynamic Head (TDH) for Accurate Sizing

Picking out the correct ESP begins by figuring out the flow rate measured in gallons per minute (GPM) along with total dynamic head (TDH). TDH itself is made up of several factors including how high the water has to be lifted vertically, losses due to pipe friction, and whatever pressure exists at the end of the system. When it comes to irrigation setups, what kind of flow we need really depends on just how big those fields are and when crops require the most water during growth cycles. Recent studies looking into farm equipment performance showed something interesting about ESPs failing early. About one third of these early failures happen because someone messed up the TDH calculation. This mistake causes pumps to run outside their optimal range by around 15 to 20 percent, which naturally leads to more mechanical stress and higher electricity bills over time.

Aligning Pump Capacity with Wellbore and Reservoir Characteristics

When selecting pumps for subsurface applications, their size and material composition really need to align with what's down there below ground. Things like how big the well actually is, what kind of fluids are flowing through it, and how much sediment is mixed in all matter quite a bit. For instance, any well narrower than six inches across will definitely need one of those slimline models. And if we're dealing with reservoirs that have lots of gas present, then special stages designed specifically for handling gas become absolutely necessary. Now regarding motor power specifications, it's generally wise to go just a little beyond what calculations suggest. Around 10 to maybe even 15 percent extra capacity gives room for those inevitable seasonal fluctuations in fluid density. This buffer becomes particularly important when working with sandy formations since the amount of sediment suspended in the fluid can significantly impact its overall viscosity throughout different times of year.

Case Study: Flow Miscalculation Leading to Premature Pump Failure in Agricultural Well

One vineyard in Napa Valley went through four ESP replacements within just 18 months because their bearings kept failing repeatedly. They had originally installed a 250 GPM pump, but it turned out to be way too big for what they actually needed (around 160 GPM). This mismatch caused all sorts of problems including constant cycling and serious water hammer damage throughout the system. When they finally switched to an 180 GPM unit equipped with those soft start features everyone talks about, things changed dramatically. Energy use fell by nearly a quarter, and now their pumps last almost three times longer before needing maintenance. The lesson here? Don't assume your initial calculations are perfect when dealing with systems where demand fluctuates constantly. Regular checks on actual flow rates can save both money and headaches down the road.

Optimizing Efficiency and Reliability in Electric Submersible Pump Systems

Energy Efficiency Ratings and Lifecycle Cost Analysis

ESPs account for 20–50% of energy use in water-intensive operations like irrigation and treatment (DOE 2023). Premium efficiency models with IE4/IE5 ratings reduce energy losses by 12–18%, saving $3,800–$8,200 annually in continuous-duty settings. Lifecycle cost analysis should consider:

• Energy use per 1,000 gallons pumped
• Maintenance intervals (6 vs. 12 months)
• Expected service life (8–15 years, depending on materials and environment)

Maintenance Intervals and Reliability Comparisons

Reliability varies significantly among manufacturers in corrosive environments. According to the 2023 Hydraulic Institute Report:

Metric	Brand A	Brand B	Brand C
MTBF (hours)	28,500	34,200	41,000
Seal failure rate	11%	6%	3%
Corrosion resistance	304 SS	316L SS	Duplex

Scheduled maintenance every 9 months strikes the optimal balance between reliability and cost, preventing premature failure without unnecessary servicing.

Integrating Variable Frequency Drives (VFDs) for Adaptive Control

VFDs match pump speed to real-time demand, eliminating the inefficiencies of fixed-speed operation. Industry research shows that adaptive VFD setups can reduce energy use by up to 35% in agricultural pumping. Key considerations include:

• Limiting harmonic distortion to under 8% THD to protect sensitive equipment
• Maintaining minimum flow to prevent motor overheating
• Installing surge protection to handle voltage fluctuations

Avoiding Over-Engineering: Right-Sizing VFDs for Actual Demand

Oversized VFDs lose 7–15% efficiency and increase capital costs by $1,200–$4,800 per unit. Accurate sizing requires analyzing demand across peak irrigation periods, low-flow nighttime operations, and emergency scenarios. Selecting VFDs aligned with current needs and projected 5-year growth avoids excessive buffer capacity while ensuring scalability.

Ensuring Compatibility with Irrigation and Water Treatment Systems

Integrating electric submersible pumps with drip, sprinkler, and pivot irrigation systems

The performance of ESP really hinges on whether it works well with the existing irrigation hydraulics setup. For drip systems specifically, operators need those special low-flow but high-pressure pumps if they want to keep the lines properly pressurized and avoid those annoying emitter clogs that nobody likes dealing with. When it comes to center pivot systems though, things change completely. These setups demand high flow pumps just to get that even spray pattern right across acres of crops. Get the discharge rates wrong and watch out for pressure drops happening all over the place. What happens next? Uneven watering distribution for sure, plus potentially wasting around 30% of precious water every single year. That kind of inefficiency adds up fast for farmers trying to manage costs effectively.

Selecting pumps for different crop zones and irrigation demands

Crop type and soil conditions dictate pump specifications. Orchards using fertilizer-injected drip systems benefit from corrosion-resistant stainless steel pumps, while sandy soils require abrasion-tolerant impellers. In rice cultivation, axial-flow ESPs move large volumes at low heads more efficiently than centrifugal models, reducing energy use by 15–20%.

Applications in municipal water supply and wastewater treatment

About 70 percent of all deep well water drawn for cities comes from ESP systems because their motors are completely sealed against groundwater pollution. When it comes to handling waste water, these pumps can move sludge containing around 12% solids if equipped with special vortex impeller designs. According to a recent industry check in 2022, nearly 9 out of 10 sewage treatment facilities that upgraded to ESP technology actually passed EPA requirements for water discharge without needing extra filters. That's pretty impressive considering how strict those regulations have become lately.

Handling solids and abrasives in challenging wastewater environments

Design Feature	Impact on Performance	Typical Application
Hardened cast iron volute	Resists abrasive particles ≤ 3mm	Mining wastewater
Tungsten-carbide shafts	Reduces wear from sand by 60%	Coastal treatment plants
Vortex impeller	Passes fibrous materials ≤ 75mm long	Municipal sewage systems

Case Study: ESP retrofit in urban sewage lift station improves uptime by 40%

A small town in the Midwest swapped out their old vertical turbines for specially made ESP units with titanium parts at their primary sewage lift station. This change made a big difference in dealing with all those stubborn wipes that just won't break down, and maintenance bills dropped around $18k each year as a result. The pumps started working better too, jumping from 68% efficiency up to 82%. That meant they saved about 950 kilowatt hours every day. Even when demand spiked, the system kept pumping steady at 380 liters per second. All told, this upgrade gave them roughly 40% more time between breakdowns, which is pretty impressive for anyone running wastewater facilities.

FAQ: Understanding Electric Submersible Pumps

1. What are the main types of electric submersible pumps?

The main types of electric submersible pumps are centrifugal, mixed-flow, and axial-flow pumps, each designed for specific flow rate and pressure output needs.

2. How do electric submersible pumps handle harsh environments?

ESPs are constructed with durable materials such as stainless steel and special polymers resistant to corrosion, and feature advanced sealing systems like mechanical face seals and triple-lip O-rings for IP68 water ingress protection.

3. How should I choose the right electric submersible pump for my application?

Choosing the correct ESP involves evaluating the flow rate and total dynamic head (TDH) for your application, considering wellbore and reservoir characteristics, and accounting for environmental factors.

4. What are the benefits of using variable frequency drives (VFDs) with ESPs?

Integrating VFDs with ESPs allows for adaptive speed control, reducing energy consumption by up to 35% in agricultural applications and matching demand to real-time system requirements.
