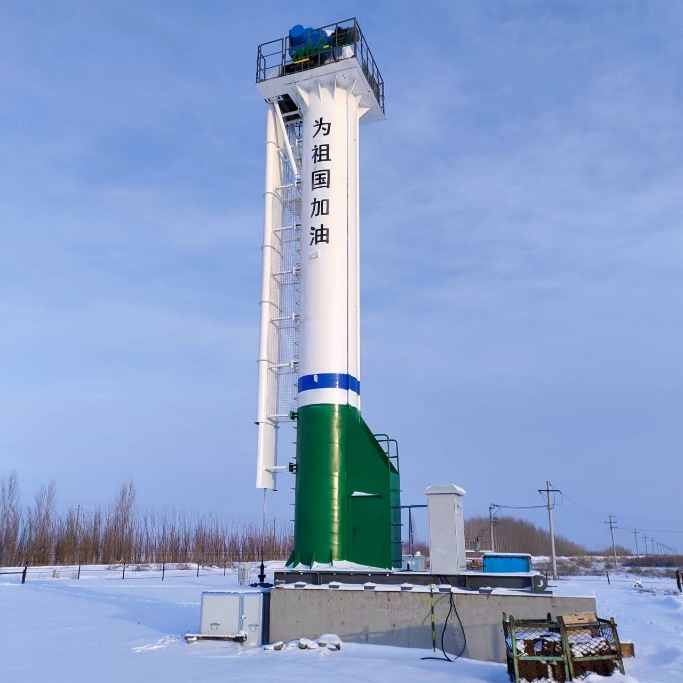

Which oil field scenarios suit pumping units for stable oil extraction?

Matching Pumping Unit Performance to Production Rate and Reservoir Depth

Optimal stroke length and speed selection for low- to moderate-rate wells (5–50 BOPD)

Getting the mix right between how long each stroke is and how fast the pump works makes all the difference when it comes to efficiency in those mid-range wells that aren't producing huge volumes. When looking at wells yielding anywhere from 5 to 50 barrels of oil daily, most operators find their sweet spot around 6 to 15 strokes per minute with stroke lengths ranging from about 40 to 100 inches. Go beyond these numbers though, and things start going wrong pretty quickly. The pump starts pounding against the fluids instead of moving them smoothly, which wears out mechanical parts faster than anyone wants. Take one company operating in the Permian Basin as an example they cut down equipment failures by nearly a third once they settled on 78 inch strokes running at 10 SPM according to a study published in Production Optimization Journal back in 2022. And there's more to consider too. The thickness of the oil matters a lot heavier crude needs slower pumping speeds just to keep the pump filling properly. Directional wells tell another story altogether since they can handle much quicker cycles without breaking rods or causing other damage.

Deep-well constraints: rod stress, buckling risk, and power transmission efficiency beyond 6,000 ft

When going below 6,000 feet deep, those annoying harmonic vibrations start causing serious problems for rod strings. The stress builds up so fast that the risk of buckling jumps over 300% when drilling past 8,000 feet according to standard industry simulations. Fortunately, modern tapered rods constructed from Grade D alloy help out quite a bit. These special designs spread the stress across the whole string instead of concentrating it in one spot, which cuts down on those peak loads at the polished rod end by around 15 to maybe even 25 percent compared to regular straight rods. As for power transmission, things get worse as we go deeper underground. Every extra thousand feet after 6,500 feet means needing anywhere from 10 to 18% more motor torque because of all that accumulated friction from fluids and stretching effects in the rods themselves. That's why most engineers recommend gearbox reducers rated at least 30% higher than what calculations show is needed. This extra capacity helps handle those unpredictable load spikes without breaking down during operation.

Polished rod load analysis and indicator diagram interpretation for depth–rate alignment

Dynamic polished rod load measurements—visualized via dynamometer (indicator) diagrams—reveal hidden system stresses through four diagnostic patterns:

1. Fluid pound: steep pressure drop followed by a sharp spike, indicating incomplete pump fillage
2. Gas interference: erratic, irregular pressure fluctuations
3. Rod parting: sudden, sustained load reduction
4. Tubing friction: asymmetrical upstroke/downstroke load curves

Interpreting these signatures enables precise adjustments to pump submergence depth or stroke profile. Field data from 142 wells shows that mismatched pump sizing wastes 12–18% of input energy through incomplete strokes—making real-time dynamometer analysis essential for aligning surface equipment with reservoir conditions.

Case study: Permian Basin vertical wells — balancing NEMA Class C motors with 8,000-ft reservoir depth

A Permian Basin operator ran into serious problems when they moved 37 vertical wells down to those deeper Midland targets around 8,000 feet below surface. Standard NEMA Class C motors couldn't handle it, failing at an alarming rate of 63% within just 15 months because they simply didn't have enough torque for the job. What worked? They went with specially built motors featuring heavy duty bearings, plus starters that were 50% bigger than usual. Added to this mix were 1.75 inch top rods and those tapered rod strings going from 7/8 inch down to 3/4 inch. Putting all these together made a huge difference. Downtime dropped by nearly four fifths, kept production steady at their goal of 28 barrels per day, and most importantly, the time between replacing rods stretched out from every 8 months to almost 2 years instead.

Bottomhole Pressure and Fluid Level Dynamics: When Pumping Units Excel

Critical fluid level threshold (<300 ft above pump intake) triggering gas lock or underloading

Keeping fluids within 300 feet of the pump intake helps avoid problems like gas lock or underloading, which can really hurt pump performance and wear out rods faster than normal. When pumps run underloaded, they don't reach their full stroke capacity, cutting down on extraction efficiency somewhere between 15% and 25%. That's where variable frequency drives come in handy. These devices adjust the stroke speed automatically based on what's coming into the system at any given moment. Field operators who've switched to equipment with VFDs tell us about significant improvements. According to data from the Permian Basin collected by MLG Pump, these units require around 40% fewer maintenance interventions in tricky reservoir conditions compared to traditional setups. Makes sense when thinking about long term costs and operational reliability.

Declining reservoir pressure in mature fields: why pumping units outperform ESPs with lower minimum drawdown

When reservoir pressure drops below 200 psi in mature oil fields, conventional pumping units can still keep operations profitable with just 100 to 150 psi drawdown. That's way less than what electric submersible pumps need, which typically require between 300 and 400 psi to function properly. The reason lies in their basic design differences. Beam pumps work by creating lift through mechanical means without needing those high pressure differentials that drive flow in other systems. ESPs tend to struggle badly when there isn't enough pressure difference across them. Field data supports this observation too. Monitoring real time pump intake pressures shows a clear divide. About two thirds of small producing wells making less than 15 barrels per day continued operation with standard pumping equipment even after switching from failed ESP installations. And let's not forget about energy costs either. These traditional pumps consume significantly less power per barrel produced, making them especially well suited for working with reservoirs that have lost most of their natural pressure over time.

Fluid Composition Challenges: Viscosity, Solids, and Water Cut Effects on Pumping Units

Heavy crude (API <20°) and high-solids environments: torque demand spikes and rod wear acceleration

When dealing with heavy crude oil that's below 20 degrees API, pumping systems face dramatically increased resistance from the thick fluid. For every five degree drop in API gravity under 25 degrees, torque requirements jump somewhere between 18 and 22 percent, putting serious stress on gearboxes and driving equipment. At the same time, wells with sand content over 500 parts per million see their sucker rods wearing out about three times faster compared to cleaner operations. Field operators know these two problems together mean they need stronger materials for components, much closer manufacturing specs, and regular checks using dynamometers if they want to prevent unexpected breakdowns that cost money and downtime.

Water cut evolution (>70%): implications for rod string corrosion and hydraulic efficiency loss

When water content goes over 70%, corrosion problems get much worse for carbon steel rods, particularly when there's carbon dioxide or hydrogen sulfide present in the environment. In these conditions, pitting corrosion can eat away at metal surfaces at about half a millimeter per year. Another issue is that this change in fluid composition actually cuts down hydraulic efficiency somewhere between 15 to 25 percent because the thinner mixture causes more slippage in the plungers. To deal with all this, operators need to think about using sacrificial anodes first off. Better rod coatings are definitely worth considering too. And adjusting those pump clearances gets tighter makes sense if we want to keep volumetric efficiency intact despite how the fluids are changing over time. These adjustments aren't optional anymore given what's happening in modern production environments.

Controversy Analysis: Are progressive cavity pumps overtaking beam pumps in high-water-cut heavy-oil fields?

Progressive cavity pumps work well for extremely viscous fluids, but beam pumping units still rule the roost in older heavy oil fields where water cut is high. The simple mechanics of beam pumps mean they stay running about 92 to 95 percent of the time even in sandy environments, which beats what most rotary systems can manage at around 80 to 85 percent uptime. Another big plus for beam pumps is how they handle gas voids better than other systems without getting locked up, something that matters a lot when formation gas ratios go above 500 standard cubic feet per barrel. Looking at the numbers makes sense too: beam pumps typically cost around $45,000 to install compared to $120,000 for progressive cavity pumps, so operators tend to stick with beam units for moderate depth heavy oil production where budget constraints matter.

Operational and Environmental Suitability of Pumping Units for Stable Production

Well conditions for stable production: consistent fluid level, minimal gas interference, and predictable decline curves

When reservoir conditions match what the pumping unit was built for, these systems run at their best. Keeping fluids consistently above the pump intake stops those damaging pump-off cycles that waste so much time and money. Operators in the Permian Basin have seen maintenance needs drop about 30% since implementing this approach according to recent production figures from last year. Gas interference remains a concern too. If gas makes up more than 15% of what's coming out, pumps struggle to fill properly. We've all seen wells where gas lock problems cut production in half sometimes. That's why automated dynamometer checks are becoming standard practice now. These regular surveys let technicians adjust parameters like stroke speed before production starts dropping off. The result? Much better planning for maintenance work. Equipment lasts anywhere between two to three extra years compared to waiting until something breaks down first.

Mechanical and hydraulic performance under varying loads: fatigue life modeling for sucker rod strings

When oil field workers start using strain based fatigue models instead of old methods, sucker rod failures drop off pretty dramatically. These models take into account all sorts of changing loads that happen during operation, things like how thick the fluids get over time or when rods stretch because they're going deeper underground. Some newer computer programs can actually look at live load data from the field and predict where problems might show up over 400 hours before they actually happen. That gives maintenance crews plenty of warning so they can replace parts before anything goes wrong completely. And let's just say nobody wants to deal with a shut down well. According to research from Ponemon Institute back in 2023, each major shutdown costs about seven hundred forty thousand dollars on average. For places dealing with really thick crude oils, tapered rod strings work wonders. Field tests showed these special designs cut rod breakages down by nearly half compared to regular straight rods. The secret seems to be spreading out the stress across the whole length rather than letting everything concentrate at one spot.

Remote area operations with diesel/natural gas engines: reliability advantages over grid-dependent ESPs

When there's no access to the power grid, diesel or natural gas engine pumps keep working when electric submersible pumps (ESPs) go down during power cuts. These engine driven systems stay online about 98% of the time when the grid goes dark, while ESPs can lose between 15 to 20% production in those remote Canadian oil fields. What really matters is how these combustion engines handle the wild voltage swings and start-up problems that happen all the time in Arctic regions, something regular generators just can't cope with. For smaller wells that barely break even, this reliability becomes absolutely essential. The math doesn't lie either - extending power lines costs over $250,000 per mile according to those feasibility reports we've seen from remote drilling projects across northern Canada.

FAQ

What is the optimal stroke length and speed for wells producing 5-50 BOPD?

The optimal stroke length is between 40 to 100 inches, and the speed should be around 6 to 15 strokes per minute. Deviation from this range can lead to mechanical wear and inefficiency.

What are the risks associated with drilling deeper than 6,000 feet?

Buckling risk increases by over 300% due to harmonic vibrations, and power transmission becomes less efficient, necessitating more motor torque and reinforced gearbox reducers.

Why are pumping units preferable over ESPs in mature fields with declining reservoir pressure?

Pumping units require a lower pressure drawdown (100-150 psi) compared to ESPs (300-400 psi). They also consume less energy and maintain production viability even at lower reservoir pressures.

How do heavy crude and high-solids environments affect pumping units?

Heavy crude increases torque demand by 18-22%, and high-solids environments accelerate rod wear, necessitating stronger materials and regular checks to avoid breakdowns.

What role do diesel/natural gas engines play in remote operations?

They offer high reliability and keep operations running during power outages, unlike grid-dependent electric submersible pumps (ESPs) that can lose significant production capacity.
